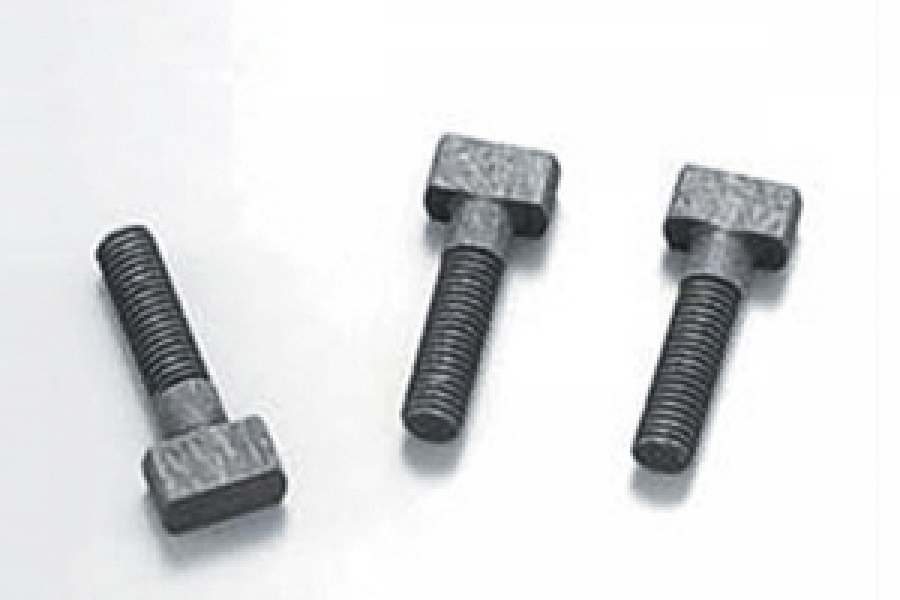

Product description C/C composite (C/C) is made by the use of PAN-based carbon fiber (PAN-CF) through a special process of "composite, curing, deposition and purification treatment". Its main characteristics are of high strength, high stiffness, high density, small expansion, resistance to high temperature, corrosion, abrasion and stable resistance to thermal shock, especially suitable for heating unit, fasteners, transmission parts and other support trays, etc. under high temperature vacuum conditions. In addition to successful applications in the aerospace field, it is also widely used in vacuum metallurgy, new chemical materials, nuclear energy, semiconductor, electronics, new energy and other fields.

	C/C composite material
compared with metal	Good heat resistance
	Minimal thermal expansion coefficient
	Very light in weight (only 1/5 of iron)
	Good corrosion resistance
compared with graphite	Higher strength
	Better toughness, not easily broken
compared with graphite	Better toughness, not easily broken
	Not easily adhesive (not glued)
	Good thermal shock resistance
	Easy to process
compared with resin	Good heat resistance
	Good corrosion resistance
	High abrasion resistance

item		Index
main material		PAN-CF
Bulk density(g/cm3)		1.2-1.8
Carbon content (%)		≥98
Thermal conductivity 1150 °C (W / MK)		20-40
Flexural strength (MPA)		36-200
Bending strength (MPA)		65-300
Resistivity (Ωmm2 / m)		35-45
Ash content (%)		≤00.05
Processing Temperature (°C)		1200-2500
Environment	Air (°C)	≤400
	Vacuum (°C)	≥1800
	inert atmosphere (°C)	≥ 3400
Size	Length (mm)	customized
	width (mm)	customized
	height(mm)	Customized

Application:widely used in metallurgical, mechanical, chemical, electrochemical and light industry as well as aerospace and nuclear industrie.
Specifications:according to customer requirements on size and use environment.
Packing:wooden box or wooden cage + pallet.
