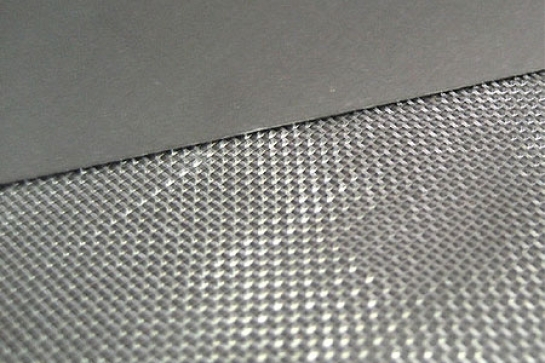

Product Description Reinforced graphite composite board is made of high-carbon natural flake graphite after chemical treatment and high temperature rolling from expanded graphite composite board. It is also known as high-strength graphite reinforced graphite sheet or plate and is made of metal sprint tooth plate or metal mesh plate or metal flat plate and pure graphite paper by composition and rolling. The general forms of composite reinforced composite boards include sprint board, screen boad, flat board, etc. The main features are good thermal stability, high strength and no cold flow and can be made into a variety of shapes and complex geometry round gaskets such as water gauge gasket, cylinder gasket, exhaust gasket with rib heat exchanger gaskets, etc. Key performance indicators:

Item	Name	Compression ratio(%)	Recovery(%)
1	Stainless steel 316 / 0.1mm sprint graphite composite board	30-40	≥15
2	Stainless steel 304 / 0.1mm sprint graphite composite board	30-40	≥15
3	Stainless steel 316 / 0.05mm bonded graphite composite panels	40-50	≥10
4	Stainless steel 304 / 0.05mm bonded graphite composite panels	40-50	≥10
5	Tinned steel sheet sprint graphite composite board 0.2-0.25mm	10-30	≥20
6	Ordinary carbon steel 0.2-0.25mm sprint graphite composite board	10-30	≥20
7	Graphite composite metal plate	30-40	≥15
8	Non-metallic fiber and graphite composite panels	40-50	≥10
9	Polyester film graphite composite panels	40-50	≥10
10	Wire Graphite Sheet	40-50	≥10

Specifications:1.0-3.0 × 1500 × 1500mm, 1.0-3.0 × 1000 × 1000mm, etc. Other sizes can be customized.
Application:pipes, valves, pumps, pressure vessels, heat exchangers, condensers, generators, air compressors, exhaust pipes, refrigerator, etc.
Packing:wooden box or wooden cage + pallet

Product Description Flexible graphite sheet and roll is made of high-carbon natural flake graphite after chemical treatment and high temperature rolling from expanded graphite composite board. Expanded graphite sheet does not contain binder and filler, therefore, it has features of very high purity, good corrosion resistance, radiation resistance, resistance to high / low temperature, low creep relaxation, flexibility, excellent performance, self-lubricating and non-permeable ability suitable for low pressure parts sealing. Graphite roll and sheet metal can be combined into various forms of graphite composite panels. Key Features: The following product performance data refer to the sheet density of 1.0g / cm3, and other density products can be processed in accordance with customer requirements.

item	A	B	C	D	E
Carbon content(%)	≥99.5	≥99.2	≥99	≥98.5	≥98
Sulfur content(PPM)	≤200	≤500	≤1000	≤1300	≤1500
Chlorine content(PPM)	≤20	≤30	≤40	≤45	≤50
Tolerance of density(g/cm3)	±0.03	±0.03	±0.04	±0.05	±0.05
Thickness Tolerance(MM)	<1±0.03;1-1.5±0.05；>1.5±0.1
Tensile strength(MPA)	≥4.0
Compression ratio(%)	≥40
Recovery(%)	≥10

Product Specifications
thickness (mm)		Width (mm)	Length (m)	density(g/cm3)
roll	bar	42~1500	1~910	0.7~1.8
0.028-1.6	0.028-3

Applications:petroleum, chemical, electric power, shipbuilding, papermaking, metallurgy, machinery and other industries
Packing:wooden box or wooden cage + pallet
